Description

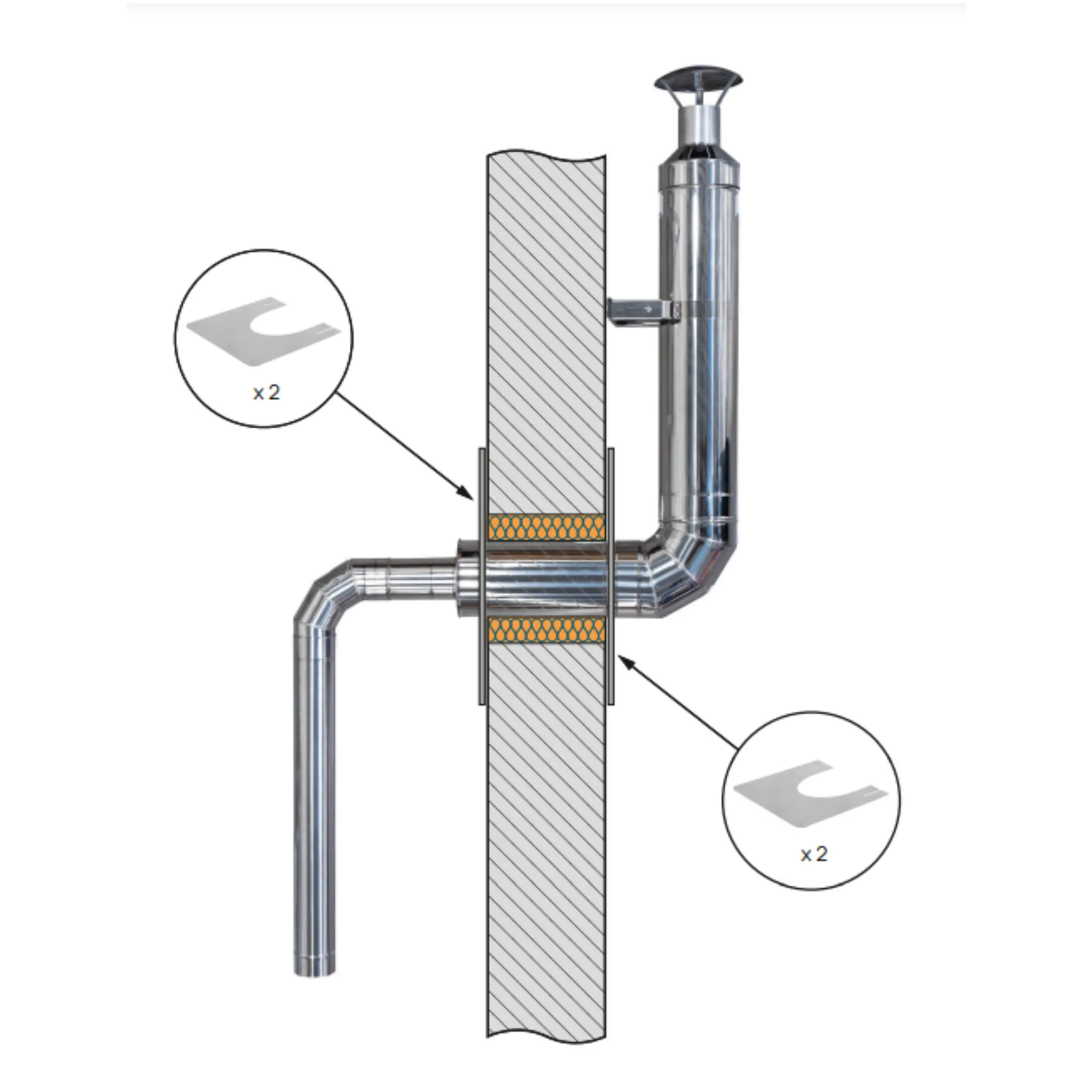

HUUM Chimney Set – Through the Wall

A PREMIUM-class stainless steel sauna chimney set designed for through-the-wall installation. The set includes all necessary components for fast and secure installation – including mounting brackets and a complete wall pass-through solution to ensure safety and stability.

Material and construction:

• Single-wall flue pipe: 0.8 mm stainless steel (1.4404/316L)

• Inner pipe of double-wall module: 0.6 mm stainless steel (1.4404/316L)

• Outer casing: polished 0.6 mm stainless steel (1.4301/304)

Why choose this chimney set?

• T600 temperature class – safety distance only 50 mm

• Acid- and soot fire-resistant

• Tested in demanding conditions

• CE certified, compliant with EN 1856-1:2009

• Sleek and elegant design, perfect even for premium saunas

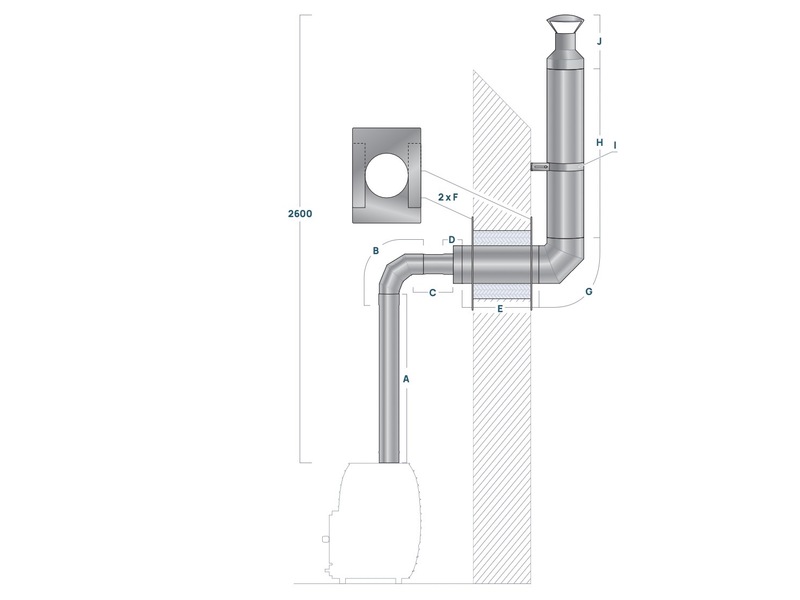

THE SET INCLUDES:

A – Single-wall pipe (1 m)

B – 90-degree single-wall elbow with cleaning hatch

C – Single-wall pipe (0.25 m)

D – Double-wall welded chimney base

E – Double-wall chimney 0.5 m

F – Cove plate for the wall (two parts)

G – 90-degree double-wall elbow

H – Double-wall pipe 1 m

I – Adjustable wall bracket, 50-150 mm

J – Chimney cap

Product sheet is available here

EAN: 4744103017171
